Трубная продукция > Фитинги DIN >

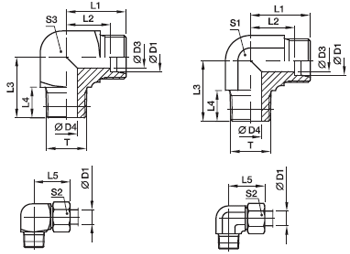

WE-R (KEG) Фитинг ввертной угловой (Конус EO 24° / Наружная короткая коническая резьба BSP (DIN 3852-2, тип C)
Фасонный корпус – сталь- сталь и латунь (S3), Серия LL 4– 8 мм D1, Серия L 6–12 мм D1, Серия S 6–12 мм D1
| Серия |
D1 |
T |
D3 |
D4 |
L1 |
L2 |
L3 |
L4 |
L5 |
S1 |
S2 |
S3 |
Вес, г/шт |
Код заказа * |
PN, бар1 |
Штук |
| CF |
71 |
MS |
| LL2 |
04 |
R1/8конич. |
3,0 |
4,0 |
15 |
11,0 |
17 |
8 |
21 |
9 |
10 |
11 |
17 |
WE04LLR |
100 |
100 |
63 |
|
| 06 |
R1/8конич. |
4,5 |
4,5 |
15 |
9,5 |
17 |
8 |
21 |
9 |
12 |
11 |
17 |
WE06LLR |
100 |
100 |
63 |
|
| 08 |
R1/8конич. |
6,0 |
6,0 |
17 |
11,5 |
20 |
8 |
23 |
12 |
14 |
12 |
24 |
WE08LLR |
100 |
100 |
63 |
|
| 10 |
R1/4конич. |
8,0 |
7,0 |
18 |
12,5 |
23 |
12 |
24 |
12 |
17 |
14 |
36 |
WE10LLR |
100 |
|
|
|
| 12 |
R1/4конич. |
10 |
7,0 |
19 |
13,0 |
23 |
12 |
25 |
14 |
19 |
17 |
46 |
WE12LLR |
100 |
|
|
|
| L3 |
06 |
R1/8конич. |
4,0 |
4,0 |
19 |
12,0 |
20 |
8 |
27 |
12 |
14 |
12 |
30 |
WE06LR |
315 |
315 |
200 |
|
| 06 |
R1/4конич. |
4,0 |
6,0 |
21 |
14,0 |
26 |
12 |
29 |
12 |
14 |
14 |
47 |
WE06LR1/4 |
315 |
315 |
|
|
| 08 |
R1/4конич. |
6,0 |
6,0 |
21 |
14,0 |
26 |
12 |
29 |
12 |
17 |
14 |
46 |
WE08LR |
315 |
315 |
200 |
|
| 08 |
R1/8конич. |
6,0 |
4,0 |
21 |
14,0 |
26 |
8 |
29 |
12 |
17 |
14 |
49 |
WE08LR1/8 |
315 |
315 |
|
|
| 08 |
R3/8конич. |
6,0 |
9,0 |
24 |
17,0 |
28 |
12 |
32 |
17 |
17 |
19 |
94 |
WE08LR3/8 |
315 |
315 |
|
|
| 10 |
R1/4конич. |
8,0 |
7,0 |
22 |
15,0 |
27 |
12 |
30 |
14 |
19 |
17 |
61 |
WE10LR |
315 |
315 |
200 |
|
| 10 |
R3/8конич. |
8,0 |
9,0 |
24 |
17,0 |
28 |
12 |
32 |
17 |
19 |
19 |
87 |
WE10LR3/8 |
315 |
315 |
|
|
| 12 |
R3/8конич. |
10,0 |
9,0 |
24 |
17,0 |
28 |
12 |
32 |
17 |
22 |
19 |
88 |
WE12LR |
315 |
315 |
200 |
|
| 12 |
R1/4конич. |
10,0 |
7,0 |
24 |
17,0 |
27 |
12 |
32 |
17 |
22 |
19 |
80 |
WE12LR1/4 |
315 |
315 |
|
|
| 12 |
R1/2конич. |
10,0 |
11,0 |
28 |
21,0 |
34 |
14 |
36 |
19 |
22 |
|
89 |
WE12LR1/2 |
315 |
315 |
|
|
| 15 |
R1/2конич. |
12,0 |
11,0 |
28 |
21,0 |
34 |
14 |
36 |
19 |
27 |
|
94 |
WE15LR |
315 |
315 |
200 |
|
| 18 |
R1/2конич. |
15,0 |
14,0 |
31 |
23,5 |
36 |
14 |
40 |
24 |
32 |
|
141 |
WE18LR |
315 |
315 |
200 |
|
| S4 |
06 |
R1/4конич. |
4,0 |
4,0 |
23 |
16,0 |
26 |
12 |
31 |
12 |
17 |
14 |
56 |
WE06SR |
400 |
250 |
|
|
| 06 |
R3/8конич. |
4,0 |
7,0 |
25 |
18,0 |
28 |
12 |
33 |
17 |
17 |
19 |
61 |
WE06SR3/8 |
400 |
400 |
|
|
| 08 |
R1/4конич. |
5,0 |
5,0 |
24 |
17,0 |
27 |
12 |
32 |
14 |
19 |
17 |
73 |
WE08SR |
400 |
400 |
250 |
|
| 08 |
R3/8конич. |
5,0 |
7,0 |
25 |
18,0 |
28 |
12 |
33 |
17 |
19 |
19 |
63 |
WE08SR3/8 |
400 |
400 |
|
|
| 10 |
R3/8конич. |
7,0 |
7,0 |
25 |
17,5 |
28 |
12 |
34 |
17 |
22 |
19 |
104 |
WE10SR |
400 |
400 |
250 |
|
| 10 |
R1/4конич. |
7,0 |
5,0 |
25 |
17,5 |
28 |
12 |
34 |
17 |
22 |
19 |
59 |
WE10SR1/4 |
400 |
400 |
|
|
| 10 |
R1/2конич. |
7,0 |
10,0 |
30 |
22,5 |
32 |
14 |
39 |
19 |
22 |
|
98 |
WE10SR1/2 |
400 |
400 |
|
|
| 12 |
R3/8конич. |
8,0 |
8,0 |
29 |
21,5 |
28 |
12 |
38 |
17 |
24 |
22 |
126 |
WE12SR |
400 |
400 |
250 |
|
| 12 |
R1/2конич. |
8,0 |
11,0 |
30 |
22,5 |
32 |
14 |
39 |
19 |
24 |
|
97 |
WE12SR1/2 |
400 |
400 |
|
|
| 14 |
R1/2конич. |
10,0 |
10,0 |
30 |
22,0 |
32 |
14 |
40 |
19 |
27 |
|
101 |
WE14SR |
400 |
400 |
250 |
|
| 16 |
R1/2конич. |
12,0 |
12,0 |
33 |
24,5 |
32 |
14 |
43 |
24 |
30 |
|
150 |
WE16SR |
400 |
400 |
250 |
|
1) Давление указано = позиция может быть доставлена
2) LL = очень легкая серия; 3) L = лёгкая серия; 4) S = тяжелая серия;
Поставляется без гайки и кольца.
*Пожалуйста, при отправке запроса дополнительно укажите суффиксы кода заказа в соответствии с требующимся Вам исполнением:
| Суффиксы кода заказа |
| Материал |
Суффикс поверхности материала |
Пример |
| Сталь оцинкованная, без Cr(VI) |
CF |
WE16SMCFX |
| Нерж. сталь |
71 |
WE16SM71X |
| Латунь |
MS |
WE16SMMSX |
|
