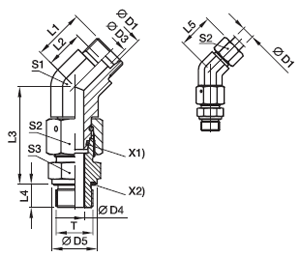

EV-R-ED 45
X1) . OR, X2) Eolastic ED

EV-R-ED 45 ( EO 24 / BSPP ED (ISO 1179)

D1 T D3 D4 D5 L1 L2 L3 L4 L5 S1 S2 S3 , / * PN, 1
CF 71
L3 06 G 1/8 A 4 4 14 16,0 9,0 34,5 8 24 14 14 14 44 EV06LREDOMD 315 315
08 G 1/4 A 6 6 19 19,0 12,0 37,5 12 27 14 17 19 67 EV08LREDOMD 315 315
10 G 1/4 A 8 6 19 19,0 12,0 40,0 12 27 19 19 19 78 EV10LREDOMD 315 315
12 G 3/8 A 10 9 22 21,0 14,0 42,0 12 29 19 22 22 112 EV12LREDOMD 315 315
15 G 1/2 A 12 11 27 24,0 17,0 46,5 14 32 22 27 27 192 EV15LREDOMD 315 315
18 G 1/2 A 15 14 27 24,0 16,5 50,0 14 33 27 32 27 242 EV18LREDOMD 315 315
22 G 3/4 A 19 18 32 26,0 18,5 55,0 16 35 30 36 32 338 EV22LREDOMD 160 160
28 G 1A 24 23 40 30,5 23,0 59,0 18 40 36 41 41 518 EV28LREDOMD 160 160
35 G 1 1/4 A 30 30 50 37,0 26,5 68,5 20 48 50 50 50 801 EV35LREDOMD 160 160
42 G 1 1/2 A 36 36 55 37,0 26,0 75,0 22 49 50 60 55 1181 EV42LREDOMD 160 160
S4 06 G 1/4 A 4 4 19 16,0 9,0 40,0 12 24 14 17 19 78 EV06SREDOMD 630 630
08 G 1/4 A 5 5 19 19,0 12,0 42,5 12 27 19 19 19 101 EV08SREDOMD 630 630
10 G 3/8 A 7 7 22 21,0 13,5 45,0 12 30 19 22 22 134 EV10SREDOMD 630 630
12 G 3/8 A 8 8 22 24,0 16,5 48,0 12 33 22 24 22 165 EV12SREDOMD 630 630
16 G 1/2 A 12 12 27 24,0 15,5 55,0 14 34 27 30 27 280 EV16SREDOMD 400 400
20 G 3/4 A 16 16 32 26,5 16,0 65,0 16 38 30 36 32 434 EV20SREDOMD 400 400
25 G 1A 20 20 40 30,5 18,5 73,0 18 43 36 46 41 792 EV25SREDOMD 400 400
30 G 1 1/4 A 25 25 50 37,0 23,5 78,5 20 50 50 50 50 1128 EV30SREDOMD 400 400
38 G 1 1/2 A 32 32 55 37,0 21,0 89,0 22 52 50 60 55 1625 EV38SREDOMD 315 315

1) =

3) L = ; 4) S =

.

*, :

( . . )
, Cr(VI) CF EV16SREDOMDCF NBR
. 71 EV16SREDOMD71 VIT

···     ···     ···     ···     ···
